Get Started with Honeywell Resideo Thermostats

Learn how to connect and control your Honeywell Resideo devices with the Seam API.

Honeywell Resideo Thermostats

Overview

Seam provides a universal API to connect and control many brands of devices such as smart locks, thermostats, and sensors. This guide provides a rapid introduction to connecting and controlling your Honeywell Resideo thermostats using the Seam API. To learn more about other brands of devices supported by Seam, head over to our integration page.

1. Install Seam SDK

Seam provides client libraries for many languages, such as JavaScript, Python, Ruby, PHP, and others, as well as a Postman collection and OpenAPI spec.

• JavaScript / TypeScript (npm, GitHub)

• Python (pip, GitHub)

• Ruby Gem (rubygem, GitHub)

• PHP (packagist, GitHub)

• Java (GitHub)

• C# (nuget, GitHub)

• Go (GitHub)

JavaScript

npm i seam

Python

pip install seam
# For some development environments, use pip3 in this command instead of pip.

Ruby

bundle add seam

PHP

composer require seamapi/seam

Java

Gradle:

// build.gradle
dependencies {
    implementation 'io.github.seamapi:java:0.x.x'
}

Maven:

<!-- pom.xml -->
<dependency>
    <groupId>io.github.seamapi</groupId>
    <artifactId>java</artifactId>
    <version>0.x.x</version>
</dependency>

C#

Install using nuget.

Go

go get github.com/seamapi/go

Once installed, sign-up for Seam to get your API key and export it as an environment variable:

$ export SEAM_API_KEY=seam_test2ZTo_0mEYQW2TvNDCxG5Atpj85Ffw

This guide uses a sandbox workspace. You can only connect virtual thermostats to a sandbox workspace. If you need to connect a real Honeywell device, use a non-sandbox workspace and API key.

2. Link Honeywell Resideo Account with Seam

To control your Honeywell Resideo device using the Seam API, you must first authorize your Seam workspace against your Honeywell Resideo account. To do so, Seam provides Connect Webviews: pre-built UX flows that walk you through authorizing your application to control your Honeywell Resideo device.

Create a Connect Webview

Python

from seam import Seam
seam = Seam()

webview = seam.connect_webviews.create(accepted_providers=["honeywell_resideo"])

assert webview.login_successful is False

# Send the Connect Webview URL to your user.
print(webview.url)

JavaScript

import { Seam } from 'seam'

const seam = new Seam()

const connectWebview = await seam.connectWebviews.create({
  accepted_providers: ["honeywell_resideo"],
})

console.log(connectWebview.login_successful) // false

// Send the Connect Webview URL to your user.
console.log(connectWebview.url)

PHP

use Seam\SeamClient;

$seam = new SeamClient("YOUR_API_KEY");

$webview = $seam->connect_webviews->create(
  accepted_providers: ["honeywell_resideo"]
);

# Send this Connect Webview URL to your user.
echo json_encode($webview)

Java

ConnectWebview createdConnectWebview = seam.connectWebviews().create(ConnectWebviewsCreateRequest.builder()
                .acceptedProviders(List.of(
                  AcceptedProvider.HONEYWELL_RESIDEO))
                .build());
System.out.println(createdConnectWebview.getLoginSuccessful()); // false

// Send the Connect Webview URL to your user.
System.out.println(createdConnectWebview.getUrl());

Go

connectWebview, err := client.ConnectWebviews.Create(
  context.Background(),
  &api.ConnectWebviewsCreateRequest{
        AcceptedProviders: []api.AcceptedProvider{
  	      api.AcceptedProviderHoneywellResideo,
        },
  },
)
if err != nil {
  return err
}
fmt.Println(connectWebview.LoginSuccessful) // false

# Send the Connect Webview URL to your user.
fmt.Println(connectWebview.Url)

return nil

Authorize Your Workspace

Navigate to the URL that the Connect Webview object returns. Because you are using a sandbox workspace, complete the login flow by entering the following Honeywell Resideo sandbox test account credentials:

• email: [e-mail]

• password: 1234

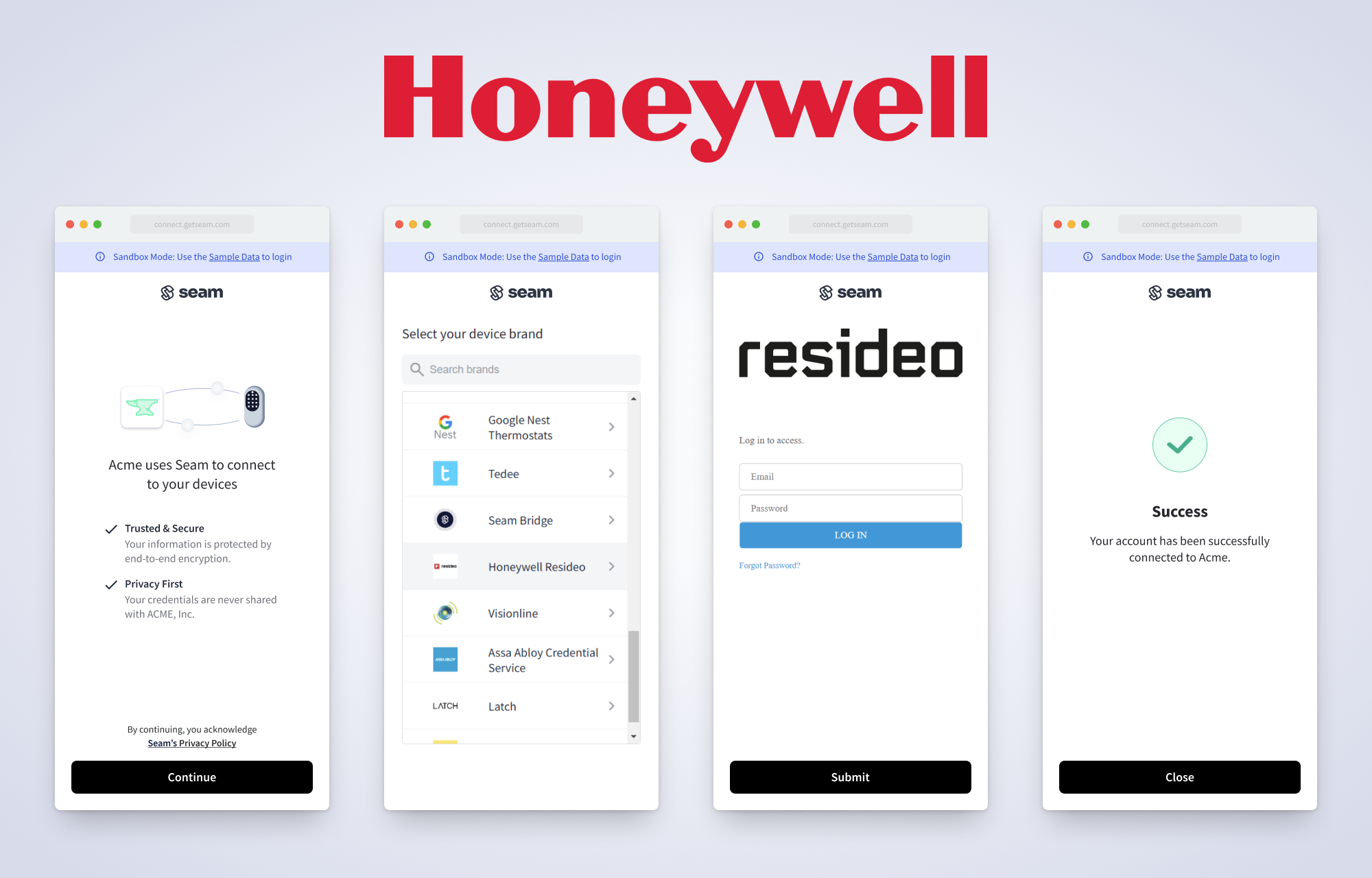

Seam Connect Webview flow to connect Honeywell Resideo account with Seam

Get the New Connect Webview

After you complete the authorization login, you receive an event for connected_account.created if you set up a webhook handler. Otherwise, you can poll for the Connect Webview until the status of this Connect Webview changes, as follows:

Python

updated_webview = seam.connect_webviews.get(
    webview.connect_webview_id
)

assert updated_webview.login_successful # true

JavaScript

const updatedWebview = await seam.connectWebviews.get(
  connectWebview.connect_webview_id,
)

console.log(updatedWebview.login_successful) // true

PHP

$webview = $seam->connect_webviews->get($webview->id);
echo json_encode($webview);

Java

ConnectWebview updatedConnectWebview = seam.connectWebviews().get(ConnectWebviewsGetRequest.builder()
                .connectWebviewId(createdConnectWebview.getConnectWebviewId())
                .build());
System.out.println(updatedConnectWebview.getLoginSuccessful()); // true

Go

updatedConnectWebview, err := client.ConnectWebviews.Get(
  context.Background(),
  &api.ConnectWebviewsGetRequest{
      ConnectWebviewId: connectWebview.ConnectWebviewId,
  },
)
if err != nil {
  return err
}
fmt.Println(updatedConnectWebview.LoginSuccessful) // true
return nil

3. Retrieve your Honeywell Resideo Thermostat

Honeywell Resideo thermostats appear with the device_type "honeywell_resideo_thermostat".

Python

devices = seam.devices.list(device_type="honeywell_resideo_thermostat")

pprint(devices[0])
# Device(device_id='06a561b6-09d2-401c-a25f-ddb1e1efd59e',
#      device_type='honeywell_resideo_thermostat',
#      location=None,
#      properties={'available_hvac_mode_settings': ['off',
#                                                   'cool',
#                                                   'heat',
#                                                   'heat_cool'],
#                  'current_climate_setting': {
#                                              'heating_set_point_celsius': 16.666666666666668,
#                                              'heating_set_point_fahrenheit': 62,
#                                              'hvac_mode_setting': 'heat',
#                                              'manual_override_allowed': True},
#                  'fan_mode_setting': 'on',
#                  'has_direct_power': True,
#                  'honeywell_resideo_metadata': {'device_name': 'T61',
#                                         'honeywell_resideo_device_id': 'c47711ec-4e8e-4785-ad3b-7a7e3f81e2b5'},
#                  'image_alt_text': 'Placeholder Lock Image',
#                  'image_url': 'https://connect.getseam.com/assets/images/devices/unknown-lock.png',
#                  'is_climate_setting_schedule_active': False,
#                  'is_cooling': False,
#                  'is_fan_running': True,
#                  'is_heating': True,
#                  'is_temporary_manual_override_active': False,
#                  'manufacturer': 'honeywell_resideo',
#                  'max_cooling_set_point_celsius': 32.22222222222222,
#                  'max_cooling_set_point_fahrenheit': 90,
#                  'max_heating_set_point_celsius': 32.22222222222222,
#                  'max_heating_set_point_fahrenheit': 90,
#                  'min_cooling_set_point_celsius': 10,
#                  'min_cooling_set_point_fahrenheit': 50,
#                  'min_heating_cooling_delta_celsius': -17.77777777777778,
#                  'min_heating_cooling_delta_fahrenheit': -32,
#                  'min_heating_set_point_celsius': 10,
#                  'min_heating_set_point_fahrenheit': 50,
#                  'model': {'accessory_keypad_supported': False,
#                            'display_name': 'Thermostat',
#                            'manufacturer_display_name': 'Honeywell Resideo'},
#                  'name': 'T61',
#                  'online': True,
#                  'temperature_celsius': 24.444444444444446,
#                  'temperature_fahrenheit': 76},
#      capabilities_supported=['thermostat'],
#      errors=[],
#      warnings=[],
#      connected_account_id='4f43e060-298f-4614-9791-dc492d629063',
#      workspace_id='398d80b7-3f96-47c2-b85a-6f8ba21d07be',
#      created_at='2024-02-29T19:44:40.762Z',
#      is_managed=True)

JavaScript

const devices = await seam.devices.list({
  device_type: 'honeywell_resideo_thermostat',
})

console.log(devices[0])
/*
{
  device_id: '06a561b6-09d2-401c-a25f-ddb1e1efd59e',
  device_type: 'honeywell_resideo_thermostat',
  capabilities_supported: [ 'thermostat' ],
  properties: {
    online: true,
    is_cooling: false,
    is_heating: true,
    manufacturer: 'honeywell_resideo',
    is_fan_running: true,
    fan_mode_setting: 'on',
    has_direct_power: true,
    honeywell_resideo_metadata: {
      device_name: 'T61',
      honeywell_resideo_device_id: 'c47711ec-4e8e-4785-ad3b-7a7e3f81e2b5'
    },
    temperature_celsius: 24.444444444444446,
    temperature_fahrenheit: 76,
    current_climate_setting: {
      hvac_mode_setting: 'heat',
      manual_override_allowed: true,
      heating_set_point_celsius: 16.666666666666668,
      heating_set_point_fahrenheit: 62
    },
    available_hvac_mode_settings: [ 'off', 'cool', 'heat', 'heat_cool' ],
    max_cooling_set_point_celsius: 32.22222222222222,
    max_heating_set_point_celsius: 32.22222222222222,
    min_cooling_set_point_celsius: 10,
    min_heating_set_point_celsius: 10,
    min_heating_cooling_delta_celsius: -17.77777777777778,
    is_temporary_manual_override_active: false,
    name: 'T61',
    model: {
      display_name: 'Thermostat',
      manufacturer_display_name: 'Honeywell Resideo',
      accessory_keypad_supported: false
    },
    image_url: 'https://connect.getseam.com/assets/images/devices/unknown-lock.png',
    image_alt_text: 'Placeholder Lock Image',
    is_climate_setting_schedule_active: false,
    min_heating_set_point_fahrenheit: 50,
    max_heating_set_point_fahrenheit: 90,
    min_cooling_set_point_fahrenheit: 50,
    max_cooling_set_point_fahrenheit: 90,
    min_heating_cooling_delta_fahrenheit: -32
  },
  location: null,
  connected_account_id: '4f43e060-298f-4614-9791-dc492d629063',
  workspace_id: '398d80b7-3f96-47c2-b85a-6f8ba21d07be',
  created_at: '2024-02-29T19:44:40.762Z',
  errors: [],
  warnings: [],
  is_managed: true,
  custom_metadata: {}
}
*/

PHP

$devices = $seam->devices->list(
  device_type: "honeywell_resideo_thermostat"
);
echo json_encode($devices[0]), "\n";

// {"device_id":"06a561b6-09d2-401c-a25f-ddb1e1efd59e","device_type":"honeywell_resideo_thermostat","capabilities_supported":["thermostat"],"properties":{"online":true,"name":"T61","model":{"display_name":"Thermostat","manufacturer_display_name":"Honeywell Resideo",...}

Java

var devices = seam.devices().list(DevicesListRequest.builder()
                .deviceType(DeviceType.HONEYWELL_RESIDEO_THERMOSTAT)
                .build());

System.out.println(devices);
// [{
//   device_id: '06a561b6-09d2-401c-a25f-ddb1e1efd59e',
//   device_type: 'honeywell_resideo_thermostat',
//   capabilities_supported: [ 'thermostat' ],
//   properties: {
//     online: true,
//     is_cooling: false,
//     is_heating: true,
//     manufacturer: 'honeywell_resideo',
//     is_fan_running: true,
//     fan_mode_setting: 'on',
//     has_direct_power: true,
//     honeywell_metadata: {
//       device_name: 'T61',
//       honeywell_device_id: 'c47711ec-4e8e-4785-ad3b-7a7e3f81e2b5'
//     },
//     temperature_celsius: 24.444444444444446,
//     temperature_fahrenheit: 76,
//     current_climate_setting: {
//       hvac_mode_setting: 'heat',
//       manual_override_allowed: true,
//       heating_set_point_celsius: 16.666666666666668,
//       heating_set_point_fahrenheit: 62
//     },
//     available_hvac_mode_settings: [ 'off', 'cool', 'heat', 'heat_cool' ],
//     max_cooling_set_point_celsius: 32.22222222222222,
//     max_heating_set_point_celsius: 32.22222222222222,
//     min_cooling_set_point_celsius: 10,
//     min_heating_set_point_celsius: 10,
//     min_heating_cooling_delta_celsius: -17.77777777777778,
//     is_temporary_manual_override_active: false,
//     name: 'T61',
//     model: {
//       display_name: 'Thermostat',
//       manufacturer_display_name: 'Honeywell Resideo',
//       accessory_keypad_supported: false
//     },
//     image_url: 'https://connect.getseam.com/assets/images/devices/unknown-lock.png',
//     image_alt_text: 'Placeholder Lock Image',
//     is_climate_setting_schedule_active: false,
//     min_heating_set_point_fahrenheit: 50,
//     max_heating_set_point_fahrenheit: 90,
//     min_cooling_set_point_fahrenheit: 50,
//     max_cooling_set_point_fahrenheit: 90,
//     min_heating_cooling_delta_fahrenheit: -32
//   },
//   location: null,
//   connected_account_id: '4f43e060-298f-4614-9791-dc492d629063',
//   workspace_id: '398d80b7-3f96-47c2-b85a-6f8ba21d07be',
//   created_at: '2024-02-29T19:44:40.762Z',
//   errors: [],
//   warnings: [],
//   is_managed: true,
//   custom_metadata: {}
// }]

Go

devices, err := client.Devices.List(
	context.Background(), &api.DevicesListRequest{
    DeviceType: api.DeviceTypeHoneywellResideoThermostat.Ptr(),
  },
)
if err != nil {
	return err
}
fmt.Println(devices)
return nil

// [{
//   device_id: '06a561b6-09d2-401c-a25f-ddb1e1efd59e',
//   device_type: 'honeywell_resideo_thermostat',
//   capabilities_supported: [ 'thermostat' ],
//   properties: {
//     online: true,
//     is_cooling: false,
//     is_heating: true,
//     manufacturer: 'honeywell_resideo',
//     is_fan_running: true,
//     fan_mode_setting: 'on',
//     has_direct_power: true,
//     honeywell_metadata: {
//       device_name: 'T61',
//       honeywell_device_id: 'c47711ec-4e8e-4785-ad3b-7a7e3f81e2b5'
//     },
//     temperature_celsius: 24.444444444444446,
//     temperature_fahrenheit: 76,
//     current_climate_setting: {
//       hvac_mode_setting: 'heat',
//       manual_override_allowed: true,
//       heating_set_point_celsius: 16.666666666666668,
//       heating_set_point_fahrenheit: 62
//     },
//     available_hvac_mode_settings: [ 'off', 'cool', 'heat', 'heat_cool' ],
//     max_cooling_set_point_celsius: 32.22222222222222,
//     max_heating_set_point_celsius: 32.22222222222222,
//     min_cooling_set_point_celsius: 10,
//     min_heating_set_point_celsius: 10,
//     min_heating_cooling_delta_celsius: -17.77777777777778,
//     is_temporary_manual_override_active: false,
//     name: 'T61',
//     model: {
//       display_name: 'Thermostat',
//       manufacturer_display_name: 'Honeywell Resideo',
//       accessory_keypad_supported: false
//     },
//     image_url: 'https://connect.getseam.com/assets/images/devices/unknown-lock.png',
//     image_alt_text: 'Placeholder Lock Image',
//     is_climate_setting_schedule_active: false,
//     min_heating_set_point_fahrenheit: 50,
//     max_heating_set_point_fahrenheit: 90,
//     min_cooling_set_point_fahrenheit: 50,
//     max_cooling_set_point_fahrenheit: 90,
//     min_heating_cooling_delta_fahrenheit: -32
//   },
//   location: null,
//   connected_account_id: '4f43e060-298f-4614-9791-dc492d629063',
//   workspace_id: '398d80b7-3f96-47c2-b85a-6f8ba21d07be',
//   created_at: '2024-02-29T19:44:40.762Z',
//   errors: [],
//   warnings: [],
//   is_managed: true,
//   custom_metadata: {}
// }]

4. Set the Current HVAC and Fan Mode Settings

Seam enables you to adjust the current heating and cooling settings on a smart thermostat, including the HVAC mode and the corresponding set points. It also enables you to configure the fan mode. These two operations return action attempts.

For example, use the following code samples to set your thermostat to heat mode and the fan mode to on:

Python

heat_request = seam.thermostats.heat(
  device = "06a561b6-09d2-401c-a25f-ddb1e1efd59e",
  heating_set_point_celsius = 20
)
pprint(heat_request)

# ActionAttempt(action_attempt_id='97125745-15d9-4970-b5be-c34ec3ce1c81',
#              action_type='SET_HEAT',
#              status='success',
#              result={},
#              error=None)

fan_on_request = seam.thermostats.set_fan_mode(
  device = "06a561b6-09d2-401c-a25f-ddb1e1efd59e",
  fan_mode = "on"
)
pprint(fan_on_request)

# ActionAttempt(action_attempt_id='9c9b584b-c645-4ce0-a9c2-79b6f1db2396',
#              action_type='SET_FAN_MODE',
#              status='success',
#              result={},
#              error=None)

JavaScript

const heat_request = await seam.thermostats.heat({
      device_id: "06a561b6-09d2-401c-a25f-ddb1e1efd59e",
      heating_set_point_celsius: 20
})

console.log(heat_request)

// {
//   actionAttempt: {
//     status: 'success',
//     action_attempt_id: '38c06dba-99b1-4c10-b542-f98e2963cb52',
//     action_type: 'SET_HEAT',
//     result: {},
//     error: null
//   }
// }

const fan_on_request = await seam.thermostats.setFanMode({
  device_id: "06a561b6-09d2-401c-a25f-ddb1e1efd59e",
  fan_mode_setting: "on"
})

console.log(fan_on_request)

// {
//   actionAttempt: {
//     status: 'success',
//     action_attempt_id: 'fca8cb4f-6e0c-4c37-878b-ebe17df46456',
//     action_type: 'SET_FAN_MODE',
//     result: {},
//     error: null
//   }
// }

PHP

$heat_request = $seam->thermostats->heat(
  device_id: "06a561b6-09d2-401c-a25f-ddb1e1efd59e",
  heating_set_point_celsius: 20
);

$fan_on_request = $seam->thermostats->set_fan_mode(
  device_id: "06a561b6-09d2-401c-a25f-ddb1e1efd59e",
  fan_mode_setting: "on"
);

Java

var deviceId = "06a561b6-09d2-401c-a25f-ddb1e1efd59e";
seam.thermostats().heat(ThermostatsHeatRequest.builder()
                .deviceId(deviceId)
                .heatingSetPointCelsius(20.0)
                .build());
Device thermostat = seam.thermostats()
        .get(ThermostatsGetRequest.builder()
                .deviceId(deviceId)
                .build());
System.out.println("Thermostat ID: " + thermostat.getDeviceId());
System.out.println("Mode: " + thermostat.getProperties().getCurrentClimateSetting().get().getHvacModeSetting());
System.out.println("Heating set point (Celsius): " +
  thermostat.getProperties().getCurrentClimateSetting().get().getHeatingSetPointCelsius());

// Thermostat ID: 06a561b6-09d2-401c-a25f-ddb1e1efd59e
// Mode: Optional[heat]
// Heating set point (Celsius): Optional[20.0]

Go

heat_request, uErr := client.Thermostats.Heat(context.Background(), &api.ThermostatsHeatRequest{
  DeviceId: "06a561b6-09d2-401c-a25f-ddb1e1efd59e",
  HeatingSetPointCelsius: api.Float64(20),
})

if uErr != nil {
return uErr
}

fmt.Println(heat_request)

// {
//   "action_attempt": {
//     "status": "pending",
//     "action_type": "SET_HEAT",
//     "action_attempt_id": "241e79cd-4bda-499f-8e2e-d7ae01d273cf",
//     "result": null,
//     "error": null
//   },
//   "ok": true
// }

fan_on_request, uErr := client.Thermostats.SetFanMode(context.Background(), &api.ThermostatsSetFanModeRequest{
  DeviceId: "06a561b6-09d2-401c-a25f-ddb1e1efd59e",
  FanMode: api.FanModeOn.Ptr(),
})

if uErr != nil {
return uErr
}

fmt.Println(fan_on_request)
return nil

// {
//   "action_attempt": {
//     "status": "pending",
//     "action_type": "SET_FAN_MODE",
//     "action_attempt_id": "1a6993af-4b00-4ca5-bacf-074164959878",
//     "result": null,
//     "error": null
//   },
//   "ok": true
// }

Next Steps

Now that you have completed this guide, you can try to connect a real Honeywell Resideo device. To do so, make sure to switch to a non-sandbox workspace and API key because you cannot connect real devices to sandbox workspaces.

If you have any questions or want to report an issue, email us at [e-mail].
