Displaying Device Health

You can display the health status of your end users' devices in your app.

To display the health—that is, the online/offline status—of your end users' devices in your app, you can use the following Seam mechanisms:

Get Device Status Using Device Properties

Seam polls connected devices and accounts every ten minutes and updates the Boolean device.properties.online property accordingly. Use a Get Device request to retrieve the current online/offline status of a device. Then, display the device status in your app.

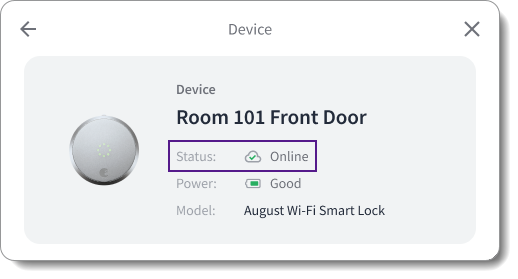

You can also use the prebuilt device details Seam Component, which includes a device status display.

Request:

device = seam.devices.get("36cf1a96-196d-41b0-9804-88154387f1f9")
pprint("Online: " + str(device.properties.online))

Response:

'Online: True'

Request:

# Use GET or POST.
curl -X 'GET' \
  'https://connect.getseam.com/devices/get' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer ${API_KEY}' \
  -H 'Content-Type: application/json' \
  -d '{
    "device_id": "36cf1a96-196d-41b0-9804-88154387f1f9"
}' | jq -r '"Online: " + (.device.properties.online | tostring)'

Response:

Online: true

Request:

const device = await seam.devices.get({device_id: "36cf1a96-196d-41b0-9804-88154387f1f9"});
console.log("Online:", device.properties.online);

Response:

Online: true

Request:

device = client.devices.get("36cf1a96-196d-41b0-9804-88154387f1f9")
puts "Online: " + device.properties['online'].to_s

Response:

Online: true

Request:

$device = $seam->devices->get("36cf1a96-196d-41b0-9804-88154387f1f9");
if ($device->properties->online === true) {
  echo "Online: true\n";
} else {
  echo "Online: false\n";
}

Response:

Online: true

Request:

var device = seam.Devices.Get(deviceId: "36cf1a96-196d-41b0-9804-88154387f1f9");
Console.WriteLine("Online: " + device.Properties.Online);

Response:

Online: True

Request:

Device device = seam.devices()
      .get(DevicesGetRequest.builder()
              .deviceId("36cf1a96-196d-41b0-9804-88154387f1f9")
              .build());
System.out.println("Online: " + device.getProperties().getOnline());

Response:

Online: true

Request:

device, err := client.Devices.Get(
	context.Background(),
  &api.DevicesGetRequest{
    DeviceId: api.String("36cf1a96-196d-41b0-9804-88154387f1f9"),
  },
)
if err != nil {
	return err
}
fmt.Println("Online:", device.Properties.Online)
return nil

Response:

Online: true

When a device connection or disconnection occurs, Seam generates a device.connected or device.disconnected event, respectively. You can retrieve these events using a List Events request or through webhooks and then display the corresponding status in your app.

When issuing a List Events request to retrieve device.connected or device.disconnected events for a specific device, include the following parameters:

Parameter Type Description

Parameter	Type	Description
`device_id`	String (UUID)	ID of the device for which you want to retrieve `device.connected` or `device.disconnected` events
`event_type`	String	Event type that you want to retrieve, that is, `device.connected` or `device.disconnected`
`since`	String	Desired starting event generation date and time You must include `since` or `between`.
`between`	Set of two strings	Desired starting and ending event generation dates and times For example: `["2024-01-01T00:00:00Z", "2024-02-01T00:00:00Z"]` You must include `between` or `since`.

device_id

String (UUID)

ID of the device for which you want to retrieve device.connected or device.disconnected events

event_type

String

Event type that you want to retrieve, that is, device.connected or device.disconnected

since

String

Desired starting event generation date and time You must include since or between.

between

Set of two strings

Desired starting and ending event generation dates and times For example: ["2024-01-01T00:00:00Z", "2024-02-01T00:00:00Z"] You must include between or since.

The following example uses the List Events request to retrieve all device.connected events for a specific device since January 1, 2024:

Request:

device_connected_events = seam.events.list(
    device_id = "36cf1a96-196d-41b0-9804-88154387f1f9",
    event_type = "device.connected",
    since = "2024-01-01T00:00:00Z"
)
pprint(device_connected_events)

Response:

[{'connected_account_id': 'c1413928-f527-4e12-abf9-d5e18d92dd33',
  'created_at': '2024-02-04T21:55:09.681Z',
  'device_id': '36cf1a96-196d-41b0-9804-88154387f1f9',
  'event_id': 'ca3114b2-088d-43f9-bb5e-ded5d19ad053',
  'event_type': 'device.connected',
  'occurred_at': '2024-02-04T21:55:09.681Z',
  'workspace_id': '398d80b7-3f96-47c2-b85a-6f8ba21d07be'},
 {'connected_account_id': 'c1413928-f527-4e12-abf9-d5e18d92dd33',
  'created_at': '2024-02-03T04:54:39.744Z',
  'device_id': '36cf1a96-196d-41b0-9804-88154387f1f9',
  'event_id': '39fcb512-82a4-431d-969f-3935eeba8929',
  'event_type': 'device.connected',
  'occurred_at': '2024-02-03T04:54:39.744Z',
  'workspace_id': '398d80b7-3f96-47c2-b85a-6f8ba21d07be'}]

Request:

# Use GET or POST.
curl -X 'GET' \
  'https://connect.getseam.com/devices/list' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer ${API_KEY}' \
  -H 'Content-Type: application/json' \
  -d '{
  "device_id": "36cf1a96-196d-41b0-9804-88154387f1f9",
  "event_type": "device.connected",
  "since": "2024-01-01T00:00:00Z"
}'

Response:

{
  "events": [
    {
      "event_id": "ca3114b2-088d-43f9-bb5e-ded5d19ad053",
      "device_id": "36cf1a96-196d-41b0-9804-88154387f1f9",
      "event_type": "device.connected",
      "workspace_id": "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
      "created_at": "2024-02-04T21:55:09.681Z",
      "occurred_at": "2024-02-04T21:55:09.681Z",
      "connected_account_id": "c1413928-f527-4e12-abf9-d5e18d92dd33"
    },
    {
      "event_id": "39fcb512-82a4-431d-969f-3935eeba8929",
      "device_id": "36cf1a96-196d-41b0-9804-88154387f1f9",
      "event_type": "device.connected",
      "workspace_id": "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
      "created_at": "2024-02-03T04:54:39.744Z",
      "occurred_at": "2024-02-03T04:54:39.744Z",
      "connected_account_id": "c1413928-f527-4e12-abf9-d5e18d92dd33"
    }
  ],
  "ok": true
}

Request:

const device_connected_events = await seam.events.list({
  device_id: "36cf1a96-196d-41b0-9804-88154387f1f9",
  event_type: "device.connected",
  since: "2024-01-01T00:00:00Z"
})
console.log(device_connected_events)

Response:

[
  {
    event_id: 'ca3114b2-088d-43f9-bb5e-ded5d19ad053',
    device_id: '36cf1a96-196d-41b0-9804-88154387f1f9',
    event_type: 'device.connected',
    workspace_id: '398d80b7-3f96-47c2-b85a-6f8ba21d07be',
    created_at: '2024-02-04T21:55:09.681Z',
    occurred_at: '2024-02-04T21:55:09.681Z',
    connected_account_id: 'c1413928-f527-4e12-abf9-d5e18d92dd33'
  },
  {
    event_id: '39fcb512-82a4-431d-969f-3935eeba8929',
    device_id: '36cf1a96-196d-41b0-9804-88154387f1f9',
    event_type: 'device.connected',
    workspace_id: '398d80b7-3f96-47c2-b85a-6f8ba21d07be',
    created_at: '2024-02-03T04:54:39.744Z',
    occurred_at: '2024-02-03T04:54:39.744Z',
    connected_account_id: 'c1413928-f527-4e12-abf9-d5e18d92dd33'
  }
]

Request:

device_connected_events = client.events.list(
  device_id: "36cf1a96-196d-41b0-9804-88154387f1f9",
  event_type: "device.connected",
  since: "2024-01-01T00:00:00Z"
)
puts device_connected_events.inspect

Response:

[<Seam::Event:0x00438
  event_id="ca3114b2-088d-43f9-bb5e-ded5d19ad053"
  device_id="36cf1a96-196d-41b0-9804-88154387f1f9"
  event_type="device.connected"
  workspace_id="398d80b7-3f96-47c2-b85a-6f8ba21d07be"
  created_at=2024-02-04 21:55:09.681 UTC>, <Seam::Event:0x00460
  event_id="39fcb512-82a4-431d-969f-3935eeba8929"
  device_id="36cf1a96-196d-41b0-9804-88154387f1f9"
  event_type="device.connected"
  workspace_id="398d80b7-3f96-47c2-b85a-6f8ba21d07be"
  created_at=2024-02-03 04:54:39.744 UTC>]

Request:

$device_connected_events = $seam->events->list(
  device_id: "36cf1a96-196d-41b0-9804-88154387f1f9",
  event_type: "device.connected",
  since: "2024-01-01T00:00:00Z"
);
echo json_encode($device_connected_events), "\n";

Response:

[{"event_id":"ca3114b2-088d-43f9-bb5e-ded5d19ad053","device_id":"36cf1a96-196d-41b0-9804-88154387f1f9","event_type":"device.connected","workspace_id":"398d80b7-3f96-47c2-b85a-6f8ba21d07be","created_at":"2024-02-04T21:55:09.681Z","occurred_at":"2024-02-04T21:55:09.681Z"},{"event_id":"39fcb512-82a4-431d-969f-3935eeba8929","device_id":"36cf1a96-196d-41b0-9804-88154387f1f9","event_type":"device.connected","workspace_id":"398d80b7-3f96-47c2-b85a-6f8ba21d07be","created_at":"2024-02-03T04:54:39.744Z","occurred_at":"2024-02-03T04:54:39.744Z"}]

Request:

var device_connected_events = seam.Events.List(
    deviceId: "36cf1a96-196d-41b0-9804-88154387f1f9",
    eventType: Seam.Api.Events.ListRequest.EventTypeEnum.DeviceConnected,
    since: "2024-01-01T00:00:00Z"
);
foreach (var device_connected_event in device_connected_events)
{
  Console.WriteLine(device_connected_event);
}

Response:

{
  "event_id": "ca3114b2-088d-43f9-bb5e-ded5d19ad053",
  "device_id": "36cf1a96-196d-41b0-9804-88154387f1f9",
  "event_type": "device.connected",
  "workspace_id": "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
  "created_at": "2024-02-04T21:55:09.681Z",
  "occurred_at": "2024-02-04T21:55:09.681Z"
}
{
  "event_id": "39fcb512-82a4-431d-969f-3935eeba8929",
  "device_id": "36cf1a96-196d-41b0-9804-88154387f1f9",
  "event_type": "device.connected",
  "workspace_id": "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
  "created_at": "2024-02-03T04:54:39.744Z",
  "occurred_at": "2024-02-03T04:54:39.744Z"
}

Request:

var deviceConnectedEvents = seam.events()
          .list(EventsListRequest.builder()
                  .deviceId("36cf1a96-196d-41b0-9804-88154387f1f9")
                  .eventType(EventsListRequestEventType.DEVICE_CONNECTED)
                  .since("2024-01-01T00:00:00Z")
                  .build());
System.out.println(deviceConnectedEvents);

Response:

[{
  "event_id" : "ca3114b2-088d-43f9-bb5e-ded5d19ad053",
  "device_id" : "36cf1a96-196d-41b0-9804-88154387f1f9",
  "event_type" : "device.connected",
  "workspace_id" : "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
  "created_at" : "2024-02-04T21:55:09.681Z",
  "occurred_at" : "2024-02-04T21:55:09.681Z",
  "connected_account_id" : "c1413928-f527-4e12-abf9-d5e18d92dd33"
}, {
  "event_id" : "39fcb512-82a4-431d-969f-3935eeba8929",
  "device_id" : "36cf1a96-196d-41b0-9804-88154387f1f9",
  "event_type" : "device.connected",
  "workspace_id" : "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
  "created_at" : "2024-02-03T04:54:39.744Z",
  "occurred_at" : "2024-02-03T04:54:39.744Z",
  "connected_account_id" : "c1413928-f527-4e12-abf9-d5e18d92dd33"
}]

Request:

device_connected_events, err := client.Events.List(
	context.Background(),
  &api.EventsListRequest{
    DeviceId: api.String("36cf1a96-196d-41b0-9804-88154387f1f9"),
    EventType: api.EventTypeDeviceConnected.Ptr(),
    Since: api.String("2024-01-01T00:00:00Z"),
  },
)
if err != nil {
	return err
}
fmt.Println(device_connected_events)
return nil

Response:

[{
  "event_id": "ca3114b2-088d-43f9-bb5e-ded5d19ad053",
  "device_id": "36cf1a96-196d-41b0-9804-88154387f1f9",
  "event_type": "device.connected",
  "workspace_id": "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
  "created_at": "2024-02-04T21:55:09.681Z",
  "occurred_at": "2024-02-04T21:55:09.681Z",
  "connected_account_id": "c1413928-f527-4e12-abf9-d5e18d92dd33"
} {
  "event_id": "39fcb512-82a4-431d-969f-3935eeba8929",
  "device_id": "36cf1a96-196d-41b0-9804-88154387f1f9",
  "event_type": "device.connected",
  "workspace_id": "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
  "created_at": "2024-02-03T04:54:39.744Z",
  "occurred_at": "2024-02-03T04:54:39.744Z",
  "connected_account_id": "c1413928-f527-4e12-abf9-d5e18d92dd33"
}]

You can set up webhook endpoints to receive device.connected and device.disconnected events. Then, you can use the receipt of these events to display the corresponding device status in your app. For more information about configuring webhooks, see Webhooks.
