Get Started with ecobee Thermostats

Learn how to connect and control your Ecobee devices with the Seam API.
ecobee Thermostats

Overview

Seam provides a universal API to connect and control many brands of devices such as smart locks, thermostats, and sensors. This guide provides a rapid introduction to connecting and controlling your ecobee thermostats using the Seam API. To learn more about other brands of devices supported by Seam, head over to our integration page.

1. Install Seam SDK

Seam provides client libraries for many languages, such as JavaScript, Python, Ruby, PHP, and others, as well as a Postman collection and OpenAPI spec.
JavaScript
Python
Ruby
PHP
Java
C#
Go
npm i seam
pip install seamapi
# For some development environments, use pip3 in this command instead of pip.
bundle add seamapi
composer require seamapi/seam
Gradle:
// build.gradle
dependencies {
implementation 'io.github.seamapi:java:0.x.x'
}
Maven:
<!-- pom.xml -->
<dependency>
<groupId>io.github.seamapi</groupId>
<artifactId>java</artifactId>
<version>0.x.x</version>
</dependency>
Install using nuget.
go get github.com/seamapi/go
Once installed, sign-up for Seam to get your API key and export it as an environment variable:
$ export SEAM_API_KEY=seam_test2ZTo_0mEYQW2TvNDCxG5Atpj85Ffw
This guide uses a sandbox workspace. You can only connect virtual thermostats to a sandbox workspace. If you need to connect a real ecobee device, use a non-sandbox workspace and API key.
To control your ecobee device using the Seam API, you must first authorize your Seam workspace against your ecobee account. To do so, Seam provides Connect Webviews: pre-built UX flows that walk you through authorizing your application to control your ecobee device.

Create a Connect Webview

Python
JavaScript
PHP
Java
Go
from seamapi import Seam
seam = Seam()
​
webview = seam.connect_webviews.create(accepted_providers=["ecobee"])
​
assert webview.login_successful is False
​
# Send the Connect Webview URL to your user.
print(webview.url)
import { Seam } from 'seam'
​
const seam = new Seam()
​
const connectWebview = await seam.connectWebviews.create({
accepted_providers: ["ecobee"],
})
​
console.log(connectWebview.login_successful) // false
​
// Send the Connect Webview URL to your user.
console.log(connectWebview.url)
use Seam\SeamClient;
​
$seam = new SeamClient("YOUR_API_KEY");
​
$webview = $seam->connect_webviews->create(
accepted_providers: ["ecobee"]
);
​
echo json_encode($webview->login_successful), "\n"; # false
​
# Send the Connect Webview URL to your user.
echo json_encode($webview->url), "\n";
ConnectWebview createdConnectWebview = seam.connectWebviews().create(ConnectWebviewsCreateRequest.builder()
.acceptedProviders(List.of(
AcceptedProvider.ECOBEE))
.build());
System.out.println(createdConnectWebview.getLoginSuccessful()); // false
​
// Send the Connect Webview URL to your user.
System.out.println(createdConnectWebview.getUrl());
connectWebview, err := client.ConnectWebviews.Create(
context.Background(),
&api.ConnectWebviewsCreateRequest{
AcceptedProviders: []api.AcceptedProvider{
api.AcceptedProviderEcobee,
},
},
)
if err != nil {
return err
}
fmt.Println(connectWebview.LoginSuccessful) // false
​
# Send the Connect Webview URL to your user.
fmt.Println(connectWebview.Url)
​
return nil

Authorize Your Workspace

Navigate to the URL that the Connect Webview object returns. Because you are using a sandbox workspace, complete the login flow by entering the following ecobee sandbox test account credentials:

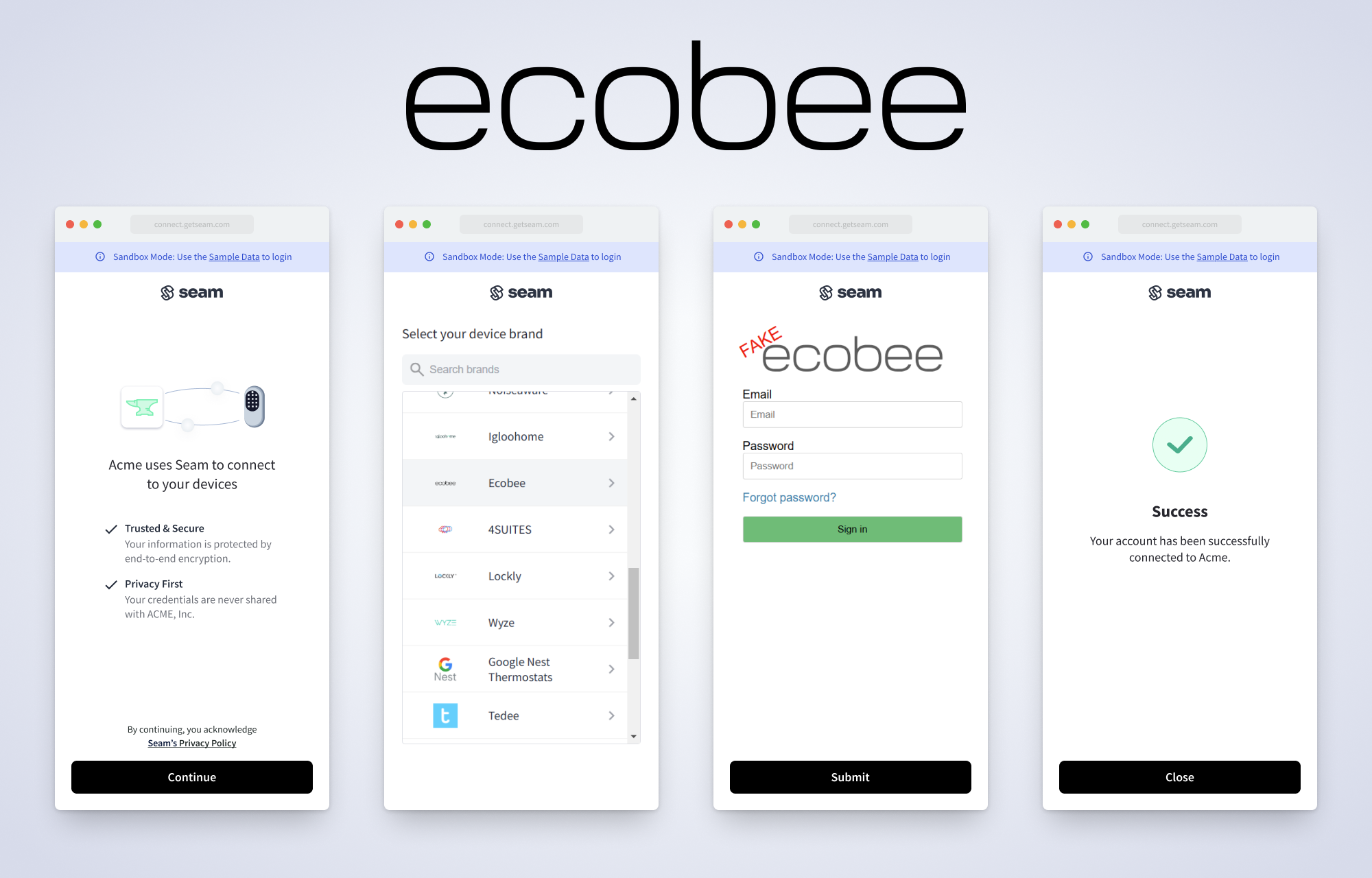

Seam Connect Webview flow to connect ecobee account with Seam

Get the New Connect Webview

After you complete the authorization login, you receive an event for connected_account.createdif you set up a webhook handler. Otherwise, you can poll for the Connect Webview until the status of this Connect Webview changes, as follows:
Python
JavaScript
PHP
Java
Go
updated_webview = seam.connect_webviews.get(
webview.connect_webview_id
)
​
assert updated_webview.login_successful # true
const updatedWebview = await seam.connectWebviews.get(
connectWebview.connect_webview_id,
)
​
console.log(updatedWebview.login_successful) // true
$updated_webview = $seam->connect_webviews->get($webview->id);
echo json_encode($updated_webview->login_successful); // true
ConnectWebview updatedConnectWebview = seam.connectWebviews().get(ConnectWebviewsGetRequest.builder()
.connectWebviewId(createdConnectWebview.getConnectWebviewId())
.build());
System.out.println(updatedConnectWebview.getLoginSuccessful()); // true
updatedConnectWebview, err := client.ConnectWebviews.Get(
context.Background(),
&api.ConnectWebviewsGetRequest{
ConnectWebviewId: connectWebview.ConnectWebviewId,
},
)
if err != nil {
return err
}
fmt.Println(updatedConnectWebview.LoginSuccessful) // true
return nil

3. Retrieve your ecobee Thermostat

ecobee thermostats appear with the device_type "ecobee_thermostat".
Python
JavaScript
PHP
Java
Go
devices = seam.devices.list(device_type="ecobee_thermostat")
​
pprint(devices[0])
# Device(
# {
# "device_id": "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
# "device_type": "ecobee_thermostat",
# "capabilities_supported": [
# "thermostat"
# ],
# "properties": {
# "online": true,
# "is_cooling": false,
# "is_heating": false,
# "manufacturer": "ecobee",
# "is_fan_running": false,
# "ecobee_metadata": {
# "device_name": "Office",
# "ecobee_device_id": "b489215e-2e2d-4179-b4d9-bbaa9f531514"
# },
# "has_direct_power": true,
# "relative_humidity": 0.54,
# "temperature_celsius": 21.2,
# "temperature_fahrenheit": 70.2,
# "current_climate_setting": {
# "hvac_mode_setting": "off",
# "manual_override_allowed": false,
# "automatic_cooling_enabled": false,
# "automatic_heating_enabled": false
# },
# "default_climate_setting": {
# "hvac_mode_setting": "off",
# "manual_override_allowed": false,
# "automatic_cooling_enabled": false,
# "automatic_heating_enabled": false
# },
# "available_hvac_mode_settings": [
# "off",
# "cool",
# "heat",
# "heat_cool"
# ],
# "can_enable_automatic_cooling": true,
# "can_enable_automatic_heating": true,
# "is_temporary_manual_override_active": false,
# "name": "Office",
# "image_url": "https://connect.getseam.com/assets/images/devices/ecobee_logo_square.png",
# "image_alt_text": "Ecobee Thermostat Image",
# "is_climate_setting_schedule_active": false
# },
# "location": null,
# "connected_account_id": "83d9062d-8f8e-4ec8-8f84-427595f94e10",
# "workspace_id": "cd9f2ac9-b201-4591-80ec-0edf08645014",
# "created_at": "2023-06-08T17:49:50.196Z",
# "errors": [],
# "warnings": []
# }
# )
const devices = await seam.devices.list({
device_type: 'ecobee_thermostat',
})
​
console.log(devices[0])
/*
{
"device_id": "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
"device_type": "ecobee_thermostat",
"capabilities_supported": [
"thermostat"
],
"properties": {
"online": true,
"is_cooling": false,
"is_heating": false,
"manufacturer": "ecobee",
"is_fan_running": false,
"ecobee_metadata": {
"device_name": "Office",
"ecobee_device_id": "b489215e-2e2d-4179-b4d9-bbaa9f531514"
},
"has_direct_power": true,
"relative_humidity": 0.54,
"temperature_celsius": 21.2,
"temperature_fahrenheit": 70.2,
"current_climate_setting": {
"hvac_mode_setting": "off",
"manual_override_allowed": false,
"automatic_cooling_enabled": false,
"automatic_heating_enabled": false
},
"default_climate_setting": {
"hvac_mode_setting": "off",
"manual_override_allowed": false,
"automatic_cooling_enabled": false,
"automatic_heating_enabled": false
},
"available_hvac_mode_settings": [
"off",
"cool",
"heat",
"heat_cool"
],
"can_enable_automatic_cooling": true,
"can_enable_automatic_heating": true,
"is_temporary_manual_override_active": false,
"name": "Office",
"image_url": "https://connect.getseam.com/assets/images/devices/ecobee_logo_square.png",
"image_alt_text": "Ecobee Thermostat Image",
"is_climate_setting_schedule_active": false
},
"location": null,
"connected_account_id": "83d9062d-8f8e-4ec8-8f84-427595f94e10",
"workspace_id": "cd9f2ac9-b201-4591-80ec-0edf08645014",
"created_at": "2023-06-08T17:49:50.196Z",
"errors": [],
"warnings": []
}
*/
$devices = $seam->devices->list(
device_type: "ecobee_thermostat"
);
echo json_encode($devices[0]), "\n";
​
// {"device_id":"5ce2cd35-09b1-458c-bb08-51ee83c35be7","device_type":"ecobee_thermostat","capabilities_supported":["thermostat"],"properties":{"online":true,"name":"hurtful hypothesis","model":{"display_name":"Thermostat","manufacturer_display_name":"Ecobee",...}
var devices = seam.devices().list(DevicesListRequest.builder()
.deviceType(DeviceType.ECOBEE_THERMOSTAT)
.build());
​
System.out.println(devices);
// [{
// "device_id" : "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
// "device_type" : "ecobee_thermostat",
// "capabilities_supported" : [ "thermostat" ],
// "properties" : {
// "online" : true,
// "name" : "Thermostat_1",
// "model" : {
// "display_name" : "Thermostat",
// "accessory_keypad_supported" : false,
// "manufacturer_display_name" : "Ecobee"
// },
// "current_climate_setting" : {
// "automatic_heating_enabled" : false,
// "automatic_cooling_enabled" : false,
// "hvac_mode_setting" : "off",
// "manual_override_allowed" : true
// },
// "temperature_celsius" : 21.11111111111111,
// "min_heating_set_point_celsius" : 7.222222222222222,
// "max_cooling_set_point_fahrenheit" : 92,
// "is_heating" : false,
// "is_cooling" : false,
// "manufacturer" : "ecobee",
// "max_heating_set_point_celsius" : 26.11111111111111,
// "max_cooling_set_point_celsius" : 33.333333333333336,
// "is_temporary_manual_override_active" : false,
// "min_heating_cooling_delta_fahrenheit" : 5,
// "available_hvac_mode_settings" : [ "off", "cool", "heat", "heat_cool" ],
// "has_direct_power" : true,
// "can_enable_automatic_cooling" : true,
// "min_cooling_set_point_fahrenheit" : 65,
// "min_heating_cooling_delta_celsius" : 2.7777777777777777,
// "min_cooling_set_point_celsius" : 18.333333333333336,
// "can_enable_automatic_heating" : true,
// "max_heating_set_point_fahrenheit" : 79,
// "is_cooling_available" : true,
// "image_url" : "https://connect.getseam.com/assets/images/devices/ecobee_3-lite_front.png",
// "is_fan_running" : false,
// "image_alt_text" : "Ecobee 3 Lite Thermostat",
// "min_heating_set_point_fahrenheit" : 45,
// "ecobee_metadata" : {
// "device_name" : "Thermostat_1",
// "ecobee_device_id" : "c44f7f6a-97c6-4317-99a1-dae14fe20bb5"
// },
// "fan_mode_setting" : "on",
// "is_climate_setting_schedule_active" : false,
// "relative_humidity" : 0.36,
// "temperature_fahrenheit" : 70,
// "is_heating_available" : true
// },
// "connected_account_id" : "aaf37f42-f5a1-4223-a7db-2b61700bf2a9",
// "workspace_id" : "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
// "created_at" : "2024-02-29T21:24:29.792Z",
// "is_managed" : true,
// "custom_metadata" : { }
// }]
devices, err := client.Devices.List(
context.Background(), &api.DevicesListRequest{
DeviceType: api.DeviceTypeEcobeeThermostat.Ptr(),
},
)
if err != nil {
return err
}
fmt.Println(devices)
return nil
​
// [{
// "device_id": "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
// "device_type": "ecobee_thermostat",
// "capabilities_supported": [
// "thermostat"
// ],
// "properties": {
// "online": true,
// "is_cooling": false,
// "is_heating": false,
// "manufacturer": "ecobee",
// "is_fan_running": true,
// "ecobee_metadata": {
// "device_name": "Thermostat_1",
// "ecobee_device_id": "c44f7f6a-97c6-4317-99a1-dae14fe20bb5"
// },
// "fan_mode_setting": "on",
// "has_direct_power": true,
// "relative_humidity": 0.36,
// "temperature_celsius": 21.11111111111111,
// "is_cooling_available": true,
// "is_heating_available": true,
// "temperature_fahrenheit": 70,
// "current_climate_setting": {
// "automatic_heating_enabled": false,
// "automatic_cooling_enabled": false,
// "hvac_mode_setting": "off",
// "manual_override_allowed": true
// },
// "available_hvac_mode_settings": [
// "off",
// "cool",
// "heat",
// "heat_cool"
// ],
// "can_enable_automatic_cooling": true,
// "can_enable_automatic_heating": true,
// "max_cooling_set_point_celsius": 33.333333333333336,
// "max_heating_set_point_celsius": 26.11111111111111,
// "min_cooling_set_point_celsius": 18.333333333333336,
// "min_heating_set_point_celsius": 7.222222222222222,
// "min_heating_cooling_delta_celsius": 2.7777777777777777,
// "is_temporary_manual_override_active": false,
// "name": "Thermostat_1",
// "model": {
// "display_name": "Thermostat",
// "manufacturer_display_name": "Ecobee",
// "accessory_keypad_supported": false
// },
// "image_url": "https://connect.getseam.com/assets/images/devices/ecobee_3-lite_front.png",
// "image_alt_text": "Ecobee 3 Lite Thermostat",
// "is_climate_setting_schedule_active": false,
// "min_heating_set_point_fahrenheit": 45,
// "max_heating_set_point_fahrenheit": 79,
// "min_cooling_set_point_fahrenheit": 65,
// "max_cooling_set_point_fahrenheit": 92,
// "min_heating_cooling_delta_fahrenheit": 5
// },
// "location": null,
// "connected_account_id": "aaf37f42-f5a1-4223-a7db-2b61700bf2a9",
// "workspace_id": "398d80b7-3f96-47c2-b85a-6f8ba21d07be",
// "created_at": "2024-02-29T21:24:29.792Z",
// "errors": [],
// "warnings": [],
// "is_managed": true,
// "custom_metadata": {}
// }]

4. Set the Current HVAC and Fan Mode Settings

Seam enables you to adjust the current heating and cooling settings on a smart thermostat, including the HVAC mode and the corresponding set points. It also enables you to configure the fan mode. These two operations return action attempts.
For example, use the following code samples to set your thermostat to heat mode and the fan mode to on:
Python
JavaScript
PHP
Java
Go
heat_request = seam.thermostats.heat(
device = "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
heating_set_point_celsius = 20
)
pprint(heat_request)
​
# ActionAttempt(action_attempt_id='97125745-15d9-4970-b5be-c34ec3ce1c81',
# action_type='SET_HEAT',
# status='success',
# result={},
# error=None)
​
fan_on_request = seam.thermostats.set_fan_mode(
device = "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
fan_mode = "on"
)
pprint(fan_on_request)
​
# ActionAttempt(action_attempt_id='9c9b584b-c645-4ce0-a9c2-79b6f1db2396',
# action_type='SET_FAN_MODE',
# status='success',
# result={},
# error=None)
const heat_request = await seam.thermostats.heat({
device_id: "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
heating_set_point_celsius: 20
})
​
console.log(heat_request)
​
// {
// actionAttempt: {
// status: 'success',
// action_attempt_id: '38c06dba-99b1-4c10-b542-f98e2963cb52',
// action_type: 'SET_HEAT',
// result: {},
// error: null
// }
// }
​
const fan_on_request = await seam.thermostats.setFanMode({
device_id: "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
fan_mode_setting: "on"
})
​
console.log(fan_on_request)
​
// {
// actionAttempt: {
// status: 'success',
// action_attempt_id: 'fca8cb4f-6e0c-4c37-878b-ebe17df46456',
// action_type: 'SET_FAN_MODE',
// result: {},
// error: null
// }
// }
$heat_request = $seam->thermostats->heat(
device_id: "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
heating_set_point_celsius: 20
);
​
$fan_on_request = $seam->thermostats->set_fan_mode(
device_id: "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
fan_mode_setting: "on"
);
var deviceId = "518f692b-f865-4590-8c3e-3849e9984c75";
seam.thermostats().heat(ThermostatsHeatRequest.builder()
.deviceId(deviceId)
.heatingSetPointCelsius(20.0)
.build());
Device thermostat = seam.thermostats()
.get(ThermostatsGetRequest.builder()
.deviceId(deviceId)
.build());
System.out.println("Thermostat ID: " + thermostat.getDeviceId());
System.out.println("Mode: " + thermostat.getProperties().getCurrentClimateSetting().get().getHvacModeSetting());
System.out.println("Heating set point (Celsius): " +
thermostat.getProperties().getCurrentClimateSetting().get().getHeatingSetPointCelsius());
​
// Thermostat ID: 518f692b-f865-4590-8c3e-3849e9984c75
// Mode: Optional[heat]
// Heating set point (Celsius): Optional[20.0]
heat_request, uErr := client.Thermostats.Heat(context.Background(), &api.ThermostatsHeatRequest{
DeviceId: "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
HeatingSetPointCelsius: api.Float64(20),
})
​
if uErr != nil {
return uErr
}
​
fmt.Println(heat_request)
​
// {
// "action_attempt": {
// "status": "pending",
// "action_type": "SET_HEAT",
// "action_attempt_id": "241e79cd-4bda-499f-8e2e-d7ae01d273cf",
// "result": null,
// "error": null
// },
// "ok": true
// }
​
fan_on_request, uErr := client.Thermostats.SetFanMode(context.Background(), &api.ThermostatsSetFanModeRequest{
DeviceId: "5ce2cd35-09b1-458c-bb08-51ee83c35be7",
FanMode: api.FanModeOn.Ptr(),
})
​
if uErr != nil {
return uErr
}
​
fmt.Println(fan_on_request)
return nil
​
// {
// "action_attempt": {
// "status": "pending",
// "action_type": "SET_FAN_MODE",
// "action_attempt_id": "1a6993af-4b00-4ca5-bacf-074164959878",
// "result": null,
// "error": null
// },
// "ok": true
// }

Next Steps

Now that you have completed this guide, you can try to connect a real ecobee device. To do so, make sure to switch to a non-sandbox workspace and API key because you cannot connect real devices to sandbox workspaces.
If you have any questions or want to report an issue, email us at [email protected].
