Get started with TTLock Devices

Learn how to connect and control your TTLock locks with the Seam API.

Overview

Seam provides a universal API to connect and control many brands of locks, including TTLock. This guide provides a rapid introduction to connecting and controlling your TTLock locks using the Seam API. To learn more about other device brands supported by the Seam API, such as August, Igloohome, Schlage, and Kwikset, head over to our integration page.

1 — Install Seam SDK

Seam provides client libraries for many languages, such as JavaScript, Python, Ruby, PHP, and others, as well as a Postman collection and OpenAPI spec.

• JavaScript / TypeScript (npm, GitHub)

• Python (pip, GitHub)

• Ruby Gem (rubygem, GitHub)

• PHP (packagist, GitHub)

• Java (GitHub)

• C# (nuget, GitHub)

• Go (GitHub)

JavaScript

npm i seam

Python

pip install seamapi
# For some development environments, use pip3 in this command instead of pip.

Ruby

bundle add seamapi

PHP

composer require seamapi/seam

Java

Gradle:

// build.gradle
dependencies {
    implementation 'io.github.seamapi:java:0.x.x'
}

Maven:

<!-- pom.xml -->
<dependency>
    <groupId>io.github.seamapi</groupId>
    <artifactId>java</artifactId>
    <version>0.x.x</version>
</dependency>

C#

Install using nuget.

Go

go get github.com/seamapi/go

Once installed, sign-up for Seam to get your API key, and export it as an environment variable:

$ export SEAM_API_KEY=seam_test2ZTo_0mEYQW2TvNDCxG5Atpj85Ffw

This guide uses a Sandbox Workspace. Only virtual devices can be connected. If you need to connect a real TTLock device, use a non-sandbox workspace and API key.

2 — Link Your TTLock Account with Seam

To control your TTLock locks via the Seam API, you must first authorize your Seam workspace against your TTLock account. To do so, Seam provides Connect Webviews: pre-built UX flows that walk you through authorizing your application to control your TTLock devices.

Request a Connect Webview

Python

from seamapi import Seam

seam = Seam()

webview = seam.connect_webviews.create(accepted_providers=["ttlock"])

assert webview.login_successful is False

# Send the webview URL to your user
print(webview.url)

Javascript

import { Seam } from 'seam'

const seam = new Seam()

const { connect_webview: connectWebview } = await seam.connectWebviews.create({
  accepted_providers: ['ttlock'],
})

console.log(connectWebview.login_successful) // false

// Send the webview URL to your user
console.log(connectWebview.url)

Ruby

require 'seamapi'

seam = Seam::Client.new(api_key: 'MY_API_KEY')

webview = seam.connect_webviews.create(accepted_providers: %w[ttlock])

puts webview.login_successful # false

# Send the webview URL to your user
puts webview.url

PHP

use Seam\SeamClient;

$seam = new SeamClient("YOUR_API_KEY");

$webview = $seam->connect_webviews->create(
  accepted_providers: ["ttlock"]
);

echo json_encode($webview)
/*
{"connect_webview_id":"70c4df9e-1070-441f-92f8-fd6524062cec","workspace_id":"d7418ff3-a476-4f48-9a4b-211d1d21a03d","url":"https:\/\/connect.getseam.com\/connect_webviews\/view?connect_webview_id=70c4df9e-1070-441f-92f8-fd6524062cec&auth_token=9HJbwWKbD5aJLifZcozU9WWZXxropn9Bg","connected_account_id":null,"status":"pending","custom_redirect_url":null,"custom_redirect_failure_url":null,"created_at":"2023-02-09T02:14:06.147745+00:00","error":null}
*/

Authorize Your Workspace

Navigate to the URL returned by the Webview object. Since you are using a sandbox workspace, complete the login flow by entering the TTLock sandbox test accounts credentials below:

• email: [e-mail]

• password: 1234

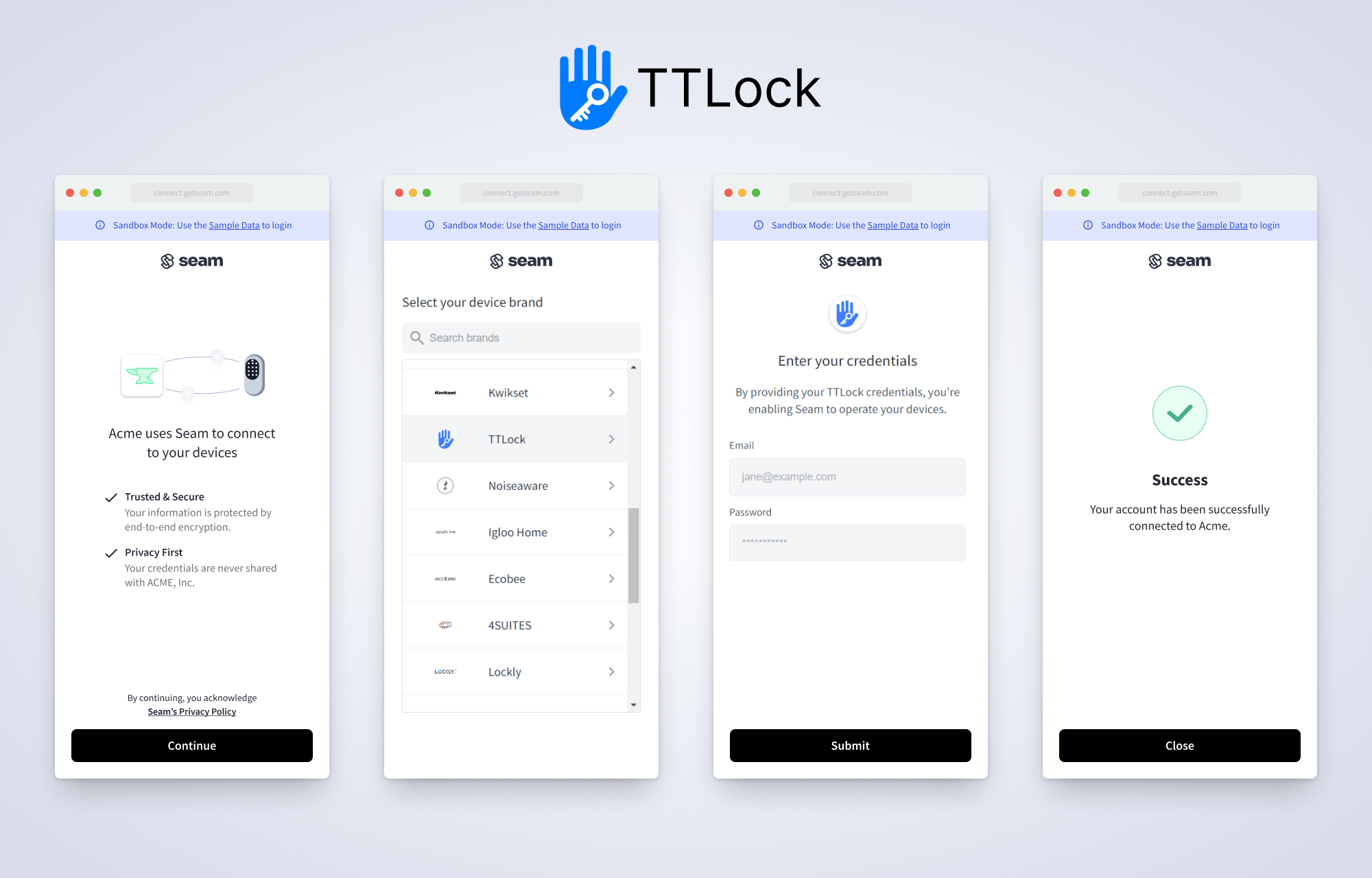

Seam Connect Webview flow to connect TTLock account with Seam

Confirm the Connect Webview was successful by querying its status:

Python

updated_webview = seam.connect_webviews.get(webview.connect_webview_id)

assert updated_webview.login_successful # true

Javascript

const updatedWebview = await seam.connectWebviews.get(
  connectWebview.connect_webview_id,
)

console.log(updatedWebview.login_successful) // true

Ruby

updated_webview = seam.connect_webviews.get(webview.connect_webview_id)

puts updated_webview.login_successful # true

PHP

$webview = $seam->connect_webviews->get($webview->id);
echo json_encode($webview);

3 — Retrieve TTLock Devices

After a TTLock account is linked with Seam, you can retrieve devices for this TTLock account. The Seam API exposes device properties like battery level, lock status, and more.

Python

all_locks = seam.locks.list()

some_lock = all_locks[0]

assert some_lock.properties["online"] is True
assert some_lock.properties["battery_level"] is True

print(some_lock)
# Device(device_id='60d0f1b6-26ae-4366-8d1b-d20ad0d6a62e', device_type='ttlock_lock', location=None, properties={'locked': False, 'online': True, 'manufacturer': 'ttlock', 'battery_level': 0.86, 'ttlock_metadata': {'lock_id': 545636388, 'lock_alias': 'Office Lock'}, 'supported_code_lengths': [4, 6, 8], 'name': 'Office Lock'}, capabilities_supported=['access_code', 'lock'], errors=[])

Javascript

const allLocks = await seam.locks.list()

const someLock = allLocks[0]

console.log(someLock.properties.online) // true
console.log(someLock.properties.locked) // true

console.log(someLock)
/*
   {
  device_id: '60d0f1b6-26ae-4366-8d1b-d20ad0d6a62e',
  device_type: 'ttlock_lock',
  capabilities_supported: [ 'access_code', 'lock' ],
  properties: {
    locked: false,
    online: true,
    manufacturer: 'ttlock',
    battery_level: 0.86,
    ttlock_metadata: { lock_id: 545636388, lock_alias: 'Office Lock' },
    supported_code_lengths: [ 4, 6, 8 ],
    name: 'Office Lock'
  },
  location: null,
  connected_account_id: '32e92b46-7978-4d48-a3e7-9b04662151b3',
  workspace_id: 'd7418ff3-a476-4f48-9a4b-211d1d21a03d',
  created_at: '2023-02-11T00:46:12.940Z',
  errors: [],
  warnings: []
}
*/

Ruby

some_lock = seam.locks.list.first

puts some_lock.properties['online'] # true
puts some_lock.properties['locked'] # true

puts some_lock

# <Seam::Device:0x00730
#   device_id="60d0f1b6-26ae-4366-8d1b-d20ad0d6a62e"
#   device_type="ttlock_lock"
#   properties={"locked"=>false, "online"=>true, "manufacturer"=>"ttlock", "battery_level"=>0.86, "ttlock_metadata"=>{"lock_id"=>545636388, "lock_alias"=>"Office Lock"}, "supported_code_lengths"=>[4, 6, 8], "name"=>"Office Lock"}
#   created_at=2023-02-11 00:46:12.94 UTC
#   errors=[]
#   warnings=[]>

PHP

use Seam\SeamClient;

$seam = new SeamClient('YOUR_API_KEY');

$locks = $seam->locks->list();

echo json_encode($locks);
/*
[{"device_id":"60d0f1b6-26ae-4366-8d1b-d20ad0d6a62e","workspace_id":"d7418ff3-a476-4f48-9a4b-211d1d21a03d","connected_account_id":"32e92b46-7978-4d48-a3e7-9b04662151b3","device_type":"ttlock_lock","properties":{"online":true,"locked":false,"door_open":null,"battery_level":0.86,"name":"Office Lock","manufacturer":"ttlock","ttlock_metadata": {lock_id: 545636388, lock_alias: "Office Lock"}},"location":null,"created_at":"2023-02-11T00:46:12.940Z","capabilities_supported":["access_code","lock"],"errors":[]}]
*/

4 — Locking & Unlocking a Door

The Remote Unlock feature must be enabled in your lock settings in order to unlock a TTLock device. To do so, open the TTLock app, navigate to your lock settings, and turn on the Remote Unlock feature.

If we detect that this feature is disabled, a warning is added to the device.

Next, you can perform the basic action of locking and unlocking a door.

Lock a Door

POST/locks/lock_door

Body

application/json

device_idstring

Response

200

Returns a pending action result

Request

JavaScriptCurl

const response = await fetch('/locks/lock_door', {
    method: 'POST',
    headers: {
      "Content-Type": "application/json"
    },
    body: JSON.stringify({}),
});
const data = await response.json();

Unlock a door

POST https://connect.getseam.com/locks/unlock_door

Request Body

Name	Type	Description
device_id	String

Python

# lock the door
seam.locks.lock_door(some_lock)
updated_lock = seam.locks.get(some_lock.device_id)
assert updated_lock.properties["locked"] is True

# Now unlock the door
seam.locks.unlock_door(some_lock)
updated_lock = seam.locks.get(some_lock.device_id)
assert updated_lock.properties["locked"] is False

Javascript

// lock the door
await seam.locks.lockDoor(someLock.device_id)
const updatedLock = await seam.locks.get(someLock.device_id)
console.log(updatedLock.properties.locked) // true

// unlock the door
await seam.locks.unlockDoor(someLock.device_id)
updatedLock = await seam.locks.get(someLock.device_id)
console.log(updatedLock.properties.locked) // false

Ruby

# lock the door
seam.locks.lock_door(some_lock)
updated_lock = seam.locks.get(some_lock.device_id)
puts updated_lock.properties['locked'] # true

# unlock the door
seam.locks.unlock_door(some_lock)
updated_lock = seam.locks.get(some_lock.device_id)
puts updated_lock.properties['locked'] # false

PHP

use Seam\SeamClient;

$seam = new SeamClient('YOUR_API_KEY');

$some_lock = $seam->locks->list()[0];

# unlock the door
$seam->locks->unlock_door($lock->device_id);
# lock the door
$seam->locks->lock_door($lock->device_id);

5 — Setting Access Codes on TTLock Devices

The Seam API makes it easy to program both ongoing codes and timebound codes on a TTLock device. You can find out more about access codes in our core concept section on access codes.

Python

# create an ongoing code
seam.access_codes.create(
  device=some_lock,
  code="492332",
  name="Personal Access Code")

# create a timebound code
seam.access_codes.create(
  device=some_lock,
  code="498882",
  name="My Temp Access Code",
  starts_at="2028-08-12T19:23:42+0000",
  ends_at="2028-08-13T19:23:42+0000")

# you can use a device or a device_id as the "device" parameter
seam.access_codes.list(device=some_lock)

Javascript

// create an ongoing code
await seam.accessCodes.create({
  device_id: someLock.device_id,
  code: '123456',
  name: 'Personal Access Code',
})

// create a timebound code
await seam.accessCodes.create({
  device_id: someLock.device_id,
  code: '888888',
  name: 'My Temp Access Code',
  starts_at: '2028-11-12T19:23:42+0000',
  ends_at: '2028-11-13T19:23:42+0000',
})

// use a device_id as the "device_id" parameter
await seam.accessCodes.list({
  device_id: someLock.device_id,
})

Ruby

# create an ongoing code
seam.access_codes.create(
  device_id: some_lock.device_id, code: '123456', name: 'Personal Access Code'
)

# create a timebound code
seam.access_codes.create(
  device_id: some_lock.device_id,
  code: '888888',
  name: 'My Temp Access Code',
  starts_at: '2028-08-12T19:23:42+0000',
  ends_at: '2028-08-13T19:23:42+0000'
)

# you can use a device or a device_id as the "device" parameter
seam.access_codes.list(some_lock)

PHP

use Seam\SeamClient;

$seam = new SeamClient("YOUR_API_KEY");

$some_lock = $seam->locks->list()[0];
$seam->access_codes->create(
  device_id: $some_lock->device_id, code: '123456', name: 'Personal Access Code'
);

$seam->access_codes->create(
  device_id: $some_lock->device_id,
  name: 'My Temp Access Code',
  code: '888888',
  starts_at: '2028-08-12T19:23:42+0000',
  ends_at: '2028-08-13T19:23:42+0000'
);

Next Steps

Now that you've completed this guide, you can try to connect a real TTLock device. To do so, make sure to switch to a non-sandbox workspace and API key as real devices cannot be connected to sandbox workspaces.
